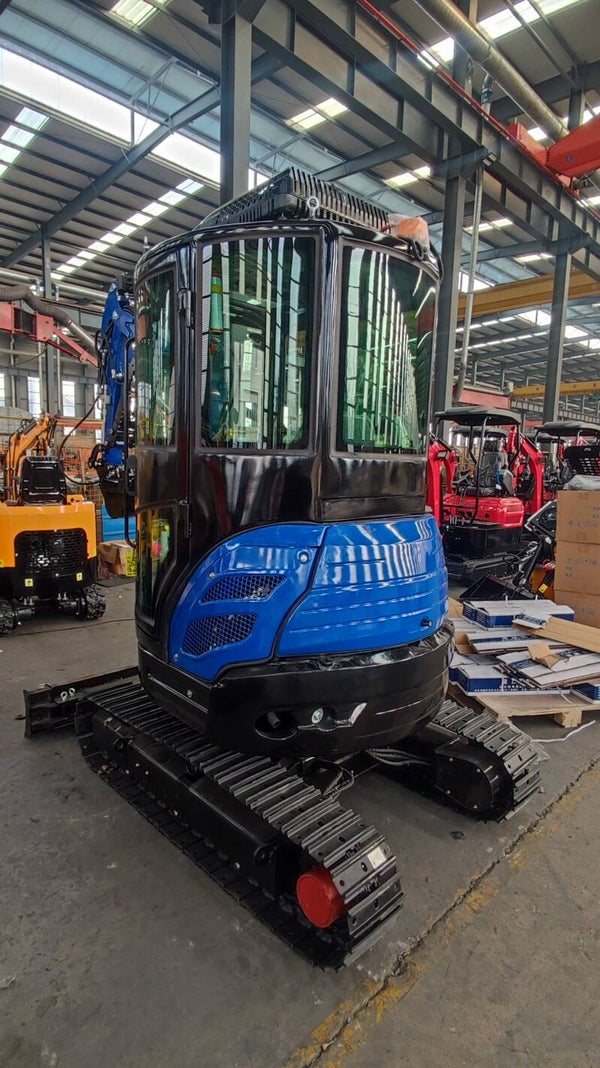

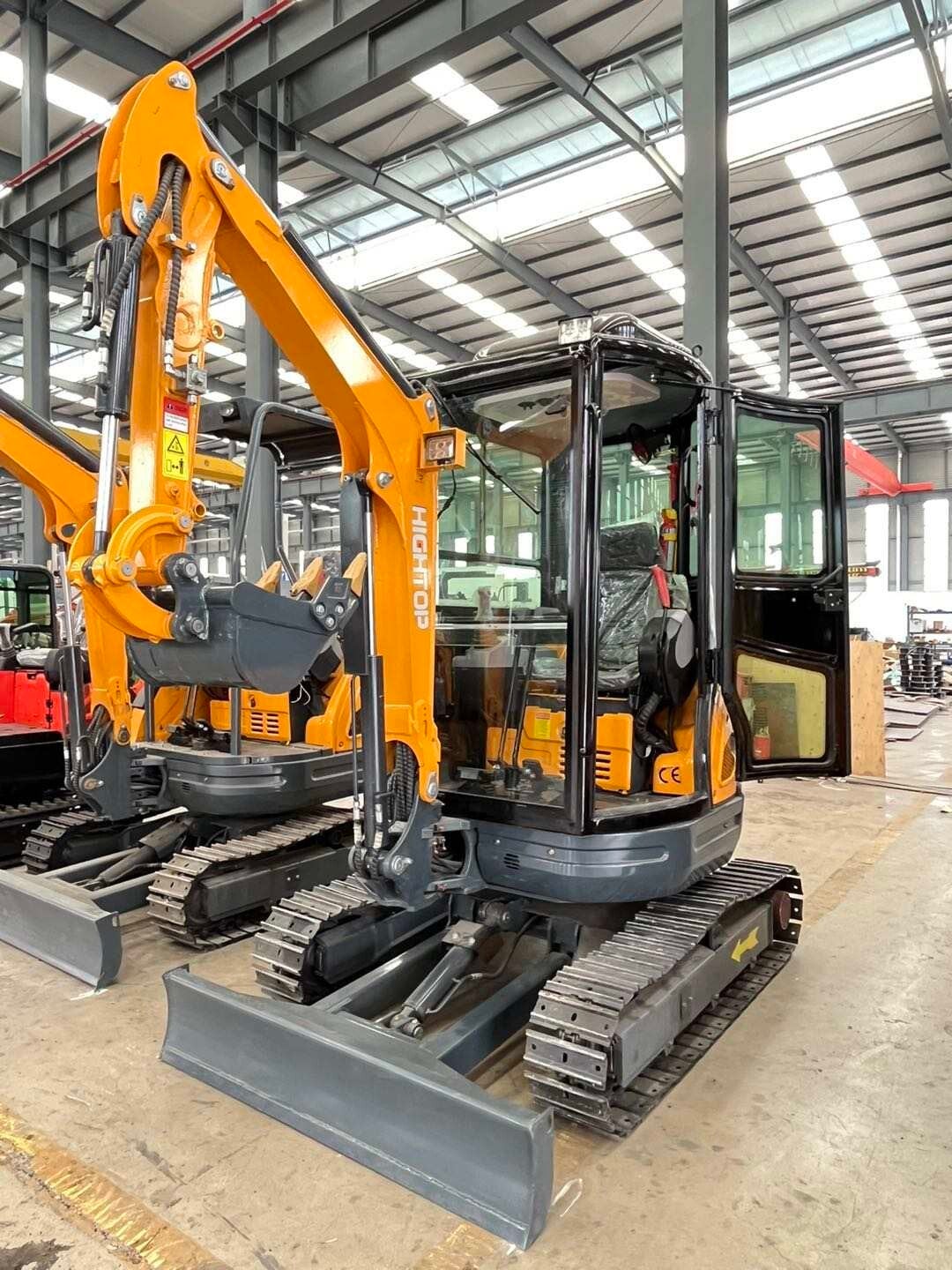

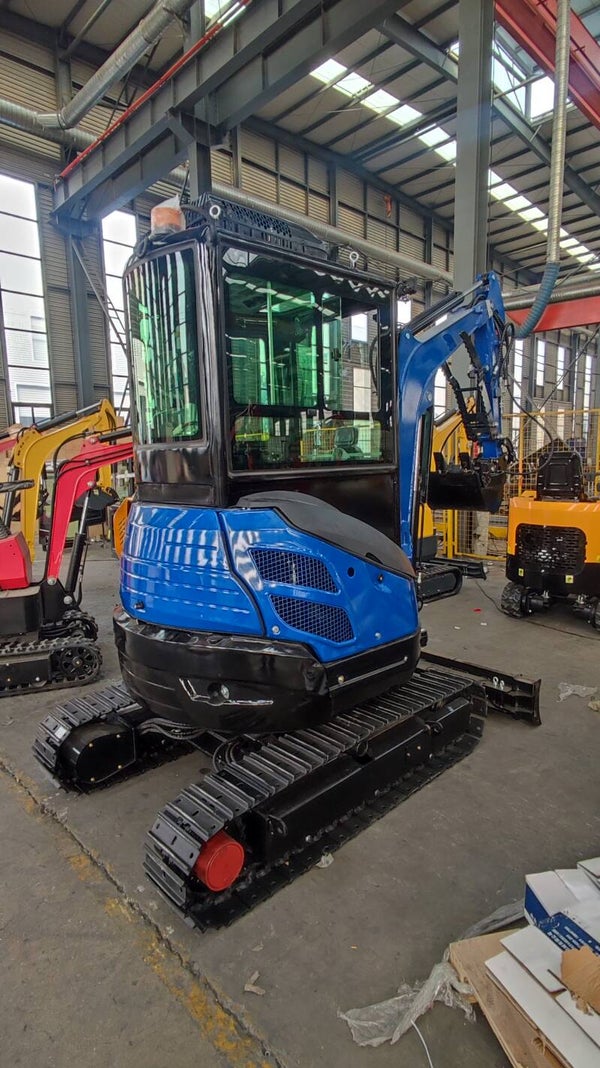

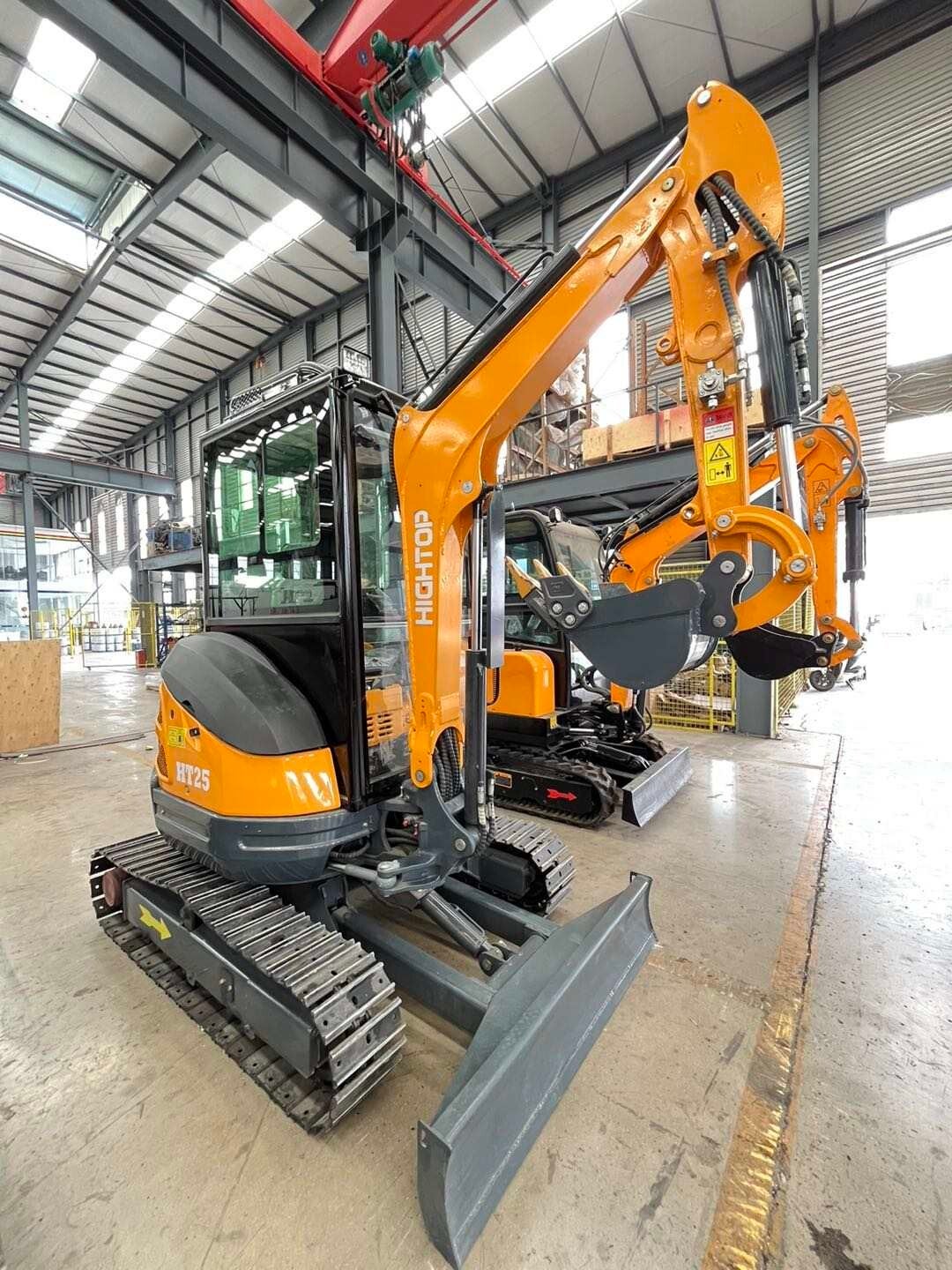

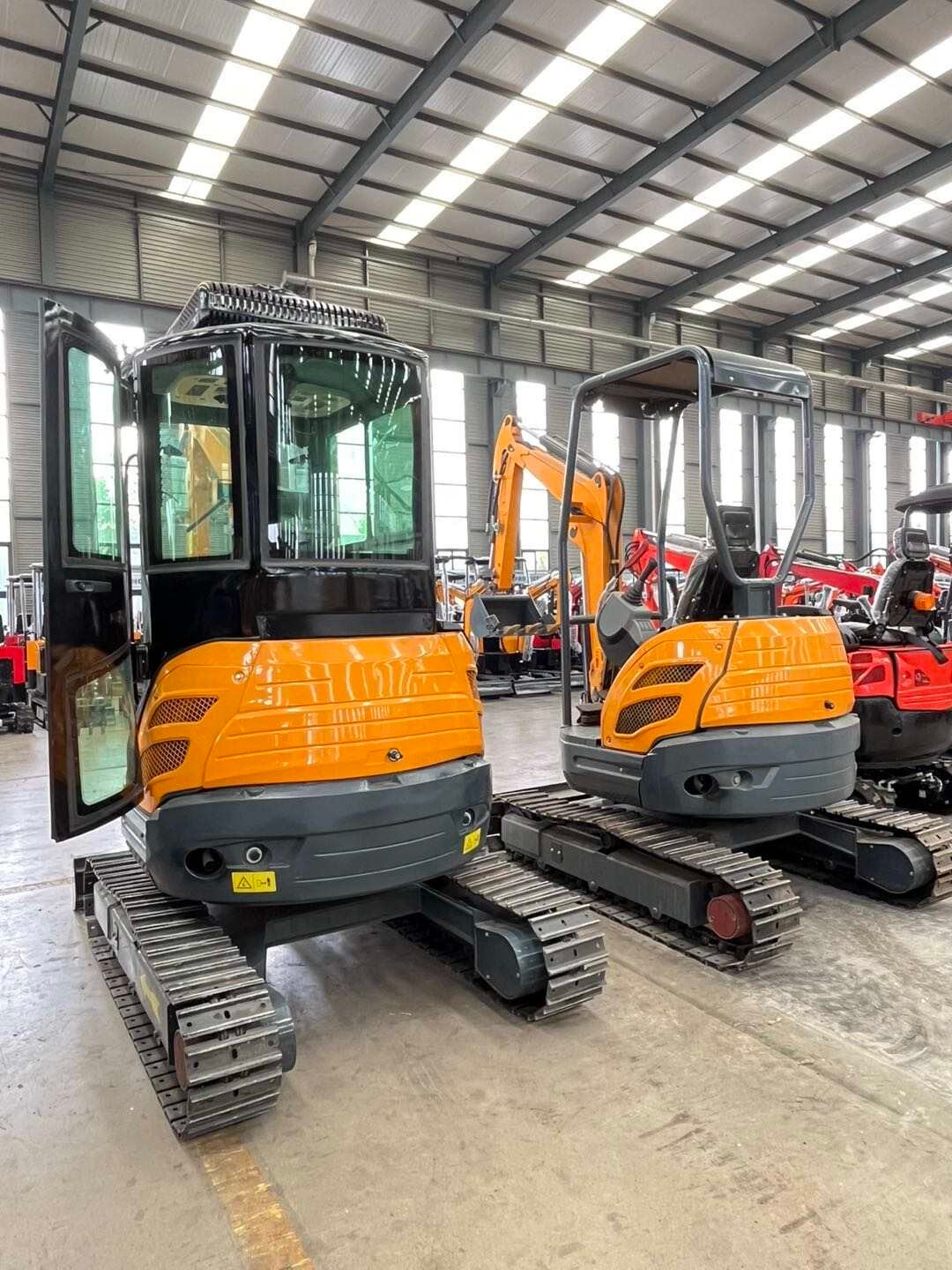

Hightop HT25-2 Diesel Excavator

Model:HT25-2

LOJACK EXCAVATOR SALES HIGHTOP HT25 STANDARD CONFIGURATION.

Cab with AC / Heat

Swing Boom

Extending Tracks

Hydraulic Thumb

Hydraulic  Quick Attachment

Steel Tracks

Standard bucket

100cm Clean-up Bucket

25cm Trenching Bucket

Ripper

Rake

Hydraulic Plunger Pump

High & Low Speed

Load Sensitive Multi Way Valve

Emission Standard

Tier 5/ Stage V

Make

KUBOTA

Model

D1105

Power /Rotation speed

14.1kw(20HP)@2000rpm

Number of cylinder

3

Maximum Travel speed

3km-5.5km/h

Width of track shoe

250mm

Number of track shoe per side

38pcs

Number of upper roller per side

1

Number of bottom roller per side

3

PERFORMANCE PARAMETER

Standard Bucket capacity

0.07m³

Swing speed

9 .5 rpm

Max. Grade ability

35°

Maximum Bucket digging force

19.5KN

Maximum Arm digging force

11KN

Hydraulic system pressure

21.5Mpa

Machine weight

2480kg

MACHINE SIZE

Overall dimension (L*W*H)

3850*1300/1500*2290mm

Chassis Recovery

1300mm

Chassis Extension

1500mm

Axle base(Track length on ground)

1300mm

Min.Ground clearance

230mm

Swing radius at tail

750mm

Working Range

Maximum Digging height

3980mm

Maximum Dumping height

2610mm

Maximum Digging depth

2500mm

Maximum Vertical digging depth

2050mm

Maximum Digging radius

4130mm

Minimum swing radius

1850mm

Maximum Lifting height of blade

280mm

Maximum Cutting depth of blade

310mm

Boom swing angle(Left)

75°

Boom swing angle(Right)

55°
